EXAMPLE 10 : Two forces 40 Kg and 50 Kg act on a body as shown in the Figure 22. Find the resultant in magnitude and direction by algebraic method.

Solution:

From the given figure,

EXAMPLE 11 : Determine the resultant of two forces, 10 N and 5 N acting at an angle 1200 with each other.

Solution:

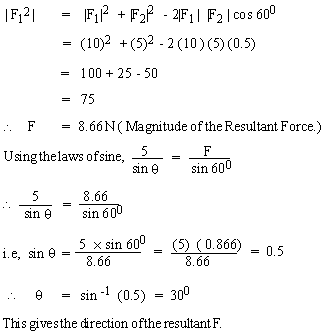

Using Laws of cosine to the shaded triangle,
