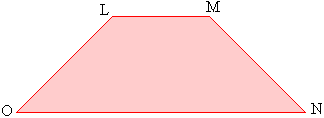

Consider a trapezoid figure 3.8 where the legs are equal in length. This is called as an isosceles trapezoid.

Figure 3.8

In figure 3.8 seg.LO = seg.MN. Therefore, LMNO is an isosceles trapezoid. In such a trapezoid the base angles are equal. This can be proven by drawing two altitudes from L & M on the seg.ON.

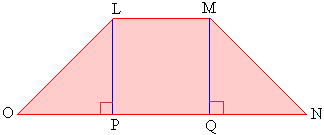

Figure 3.9

Figure 3.9 shows LP & MQ as two altitudes of Ð MNO.

Consider D LOP & D MNQ. Both are right triangles such that their hypotenuse has the same length ( LMNO is an isosceles trapezoid ).

Also seg. LP = seg MQ as the perpendicular distance between two paralles lines is always the same.

\ By HS postulate D LOP @ D MNQ.
