Compound Microscope :

Click here to enlarge

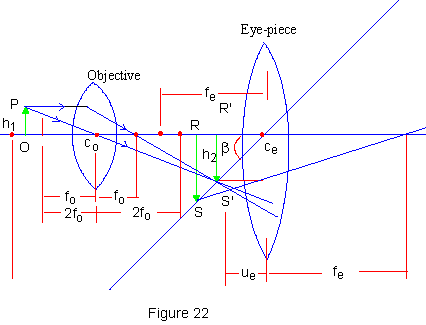

It is made up of two convex lenses, as shown in the figure VI; the lenses of shorter focal length and size facing the object OP is called the objective; the other lens called eye piece, is of greater focal length (fe> fo) and larger size. The eye is taken to be at the position of the centre Ce of eye-piece.

The object is held in between fo & 2fo hence objective produces real, inverted and magnified image R'S' which is called intermediate effect, which acts as the object for the eyepiece. The eye-piece produces virtual and erect image RS as R'S' is within its focal length - i.e. eye-piece acts as a magnifying glass.
